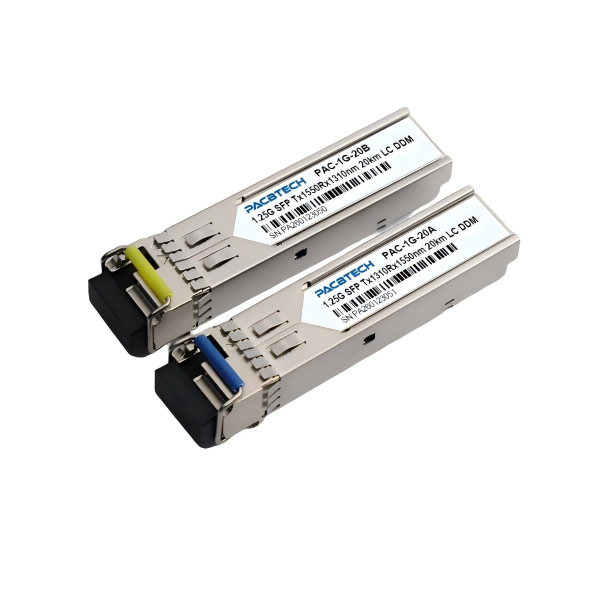

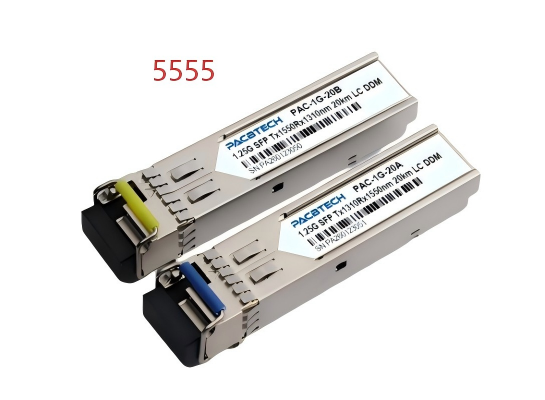

1.25 BIDI SFP Transceiver
Features
155M/1.25G/2.5Gbps Single Fiber Bi-directional Transmission
Hot-pluggable SFP Footprint
Single LC or SC Connector optional
Wide Distance Supported from 3m to 160km
Built-in Digital Diagnostic Functions
Comply with SFP MSA,SDH/SONET, IEEE Std 802.3
Operation Temperature Range 0~70°C or -40~85°C Optional
Single 3.3V Power Supply
RoHS-6 Compliant
Standard part
P/N | Data Rate | Reach | Tx | Rx | Output Power | Sensitivity |
PAC-1G-2A/B | 1.25Gbps | 2KM | 1310/1550nm FP | PIN | -9 ~ -3dbm | ≦-21dbm |
PAC-1G-30A/B | 1.25Gbps | 30KM | 1310/1550nm FP | PIN | -9 ~ -3dbm | ≦-23dbm |
PAC-1G-20+A/B | 1.25Gbps | 20KM | 1310/1490nm FP | PIN | -9 ~ -3dbm | ≦-23dbm |
PAC-1G-40A/B | 1.25Gbps | 40KM | 1310/1490nm FP | PIN | -2 ~ -3dbm | ≦-26dbm |
PAC-1G-40+A/B | 1.25Gbps | 40KM | 1310/1550nm DFB | PIN | -2 ~ -3dbm | ≦-26dbm |
PAC-1G-80A/B | 1.25Gbps | 80KM | 1490/1550nm DFB | PIN | -2 ~ -3dbm | ≦-28dbm |
PAC-1G-120A/B | 1.25Gbps | 120KM | 1490/1550nm DFB | APD | -1 ~ -4dbm | ≦-30dbm |
PAC-1G-160A/B | 1.25Gbps | 160KM | 1490/1550nm DFB | APD | -1 ~ -4dbm | ≦-32dbm |
